Connectors

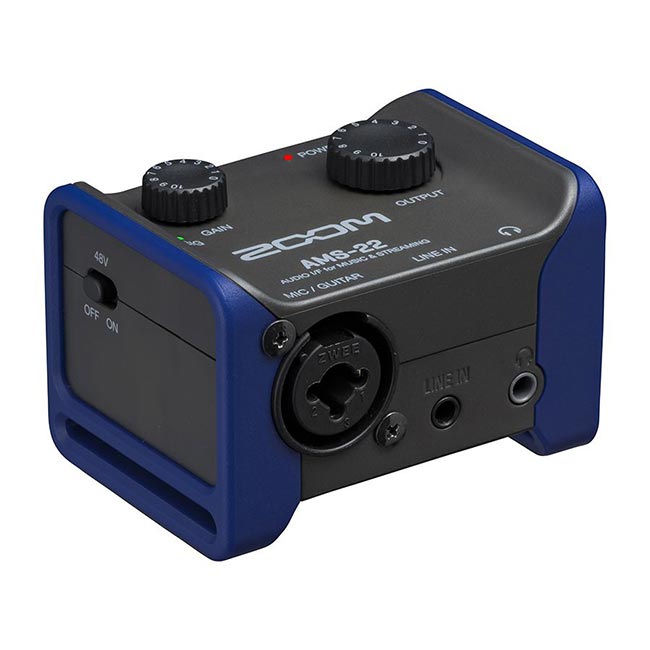

MIC/GUITAR
Type：XLR/TRS combo jack(XLR: 2 HOT, TRS: TIP HOT)
Input Gain：+8 - +54 dB (MIC) / +8 - +54 dB (GUITAR)
Input impedance：XLR: 2 kΩ (MIC)／TS: 1 MΩ (GUITAR)
Maximum input level ：XLR: +0.6 dBu (MIC)／TS: +11 dBu (GUITAR)
Phantom power：+48 V

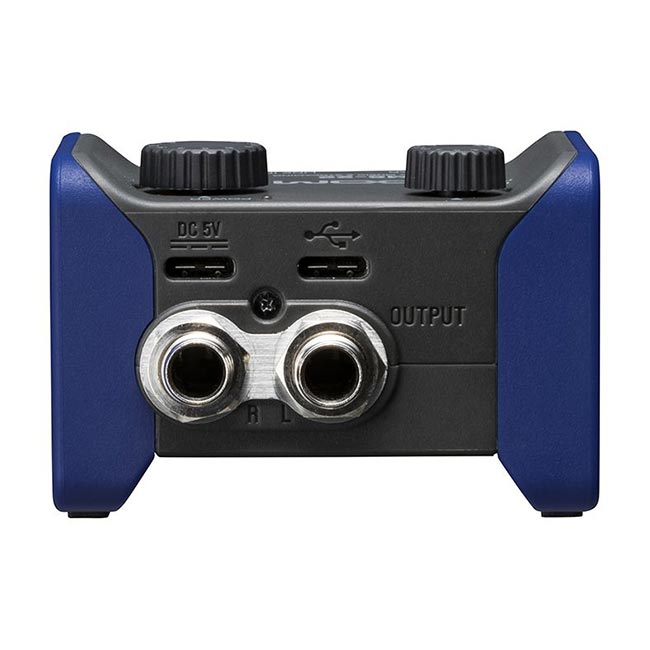

OUTPUT (STANDARD PHONE JACKS)
Type：TRS phone jacks (impedance balanced)
Maximum output level：−2 dBu (at 0 dBFS)
Output impedance：100 Ω
OUTPUT (HEADPHONE JACK)
Type：3.5mm stereo mini jack／20 mW + 20 mW (32 Ω load)
Output impedance：10 Ω
USB
USB Type-C (audio interface function)
• Use a USB cable that supports data transfer. USB bus power is supported.
DC 5V：USB Type-C (for power supply)
LINE IN
Type：3.5mm stereo mini jack
Input impedance：20 kΩ
Maximum input level ：+1.5 dBu
Frequency Response： 44.1 kHz: +0/−2 dB (20 Hz – 20 kHz)
96 kHz: +0/−3 dB (20 Hz – 40 kHz)
Equivalent Input Noise：–120 dBu or less (IHF-A) at +54dB/150Ω input
Audio Interface
INPUT AND OUTPUT CHANNELS：Recording: 2 channels／Playback: 2 channels
SAMPLING FREQUENCIES：96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz
BIT DEPTH：24-bit
INTERFACE：USB 2.0
CLASS：USB Audio Class 2.0
Power：AC adapter (ZOOM AD-17): DC 5 V/1A
• USB bus power is supported.
Rated Current：USB bus power / DC 5 V power supply: 170 mA
Power Consumption：1.8 W maximum
